TeleEye AE, by Leadtek Research Inc., provides the optimal performance among videophone surveillance systems. The TeleEye AE has a built-in 33.6Kbps modem, infrared remote control, remote controllable I/O port, a timing device for status readout, and PTZ(pan/tilt/zoom) capability. The PTZ capability has enhanced surveillance opportunites in the home or office by allowing the user to control or adjust the camera from a remote location, to detect the status of a remote site, if necessary, to activate an alarm or interface auto dialing device.

AE 2 lbs

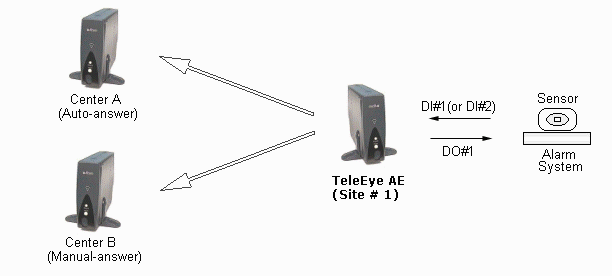

The Autodialing function enables TeleEye AE to automatically dial out two different phone numbers and reach security centers, you can set up an ID (8-digit) at each remote site for the security center to identify the call-from site.

An alarm event starts with a pulse** generated by Sensor, TeleEye AE at Site #1 is triggered and it will alternate dialing between Center A and B before a successful connection. The connection period can be up to 18 min. based on the Timer setting of TeleEye AE at Center A (if Center A answers the call before Center B does)
If Center B answers the call first, you can change the status*** of DO#1 output port from open-circuited to close-circuited as the signal to reset the alarm system and end the event.

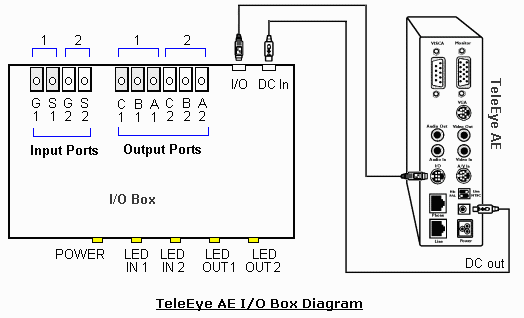

TeleEye AE I/O Box  (Optional)

With the I/O box connected to TeleEye AE, you will be able to turn on/off two electric devices (up to 10A/250VAC each port) at the remote site. The status of all I/O ports can also be monitored clearly through LED indicators at the front panel.

Specifications Control Input Dry contactor Control Output 10A/250VAC, 30VDC max. N.O./N.C./COM Power Source DC 5V +/- 10% Power Consumption 2.5 W Dimension (Wx D x H) 6.3" x 4.3" x 1.1" (160 x 110 x 28mm)

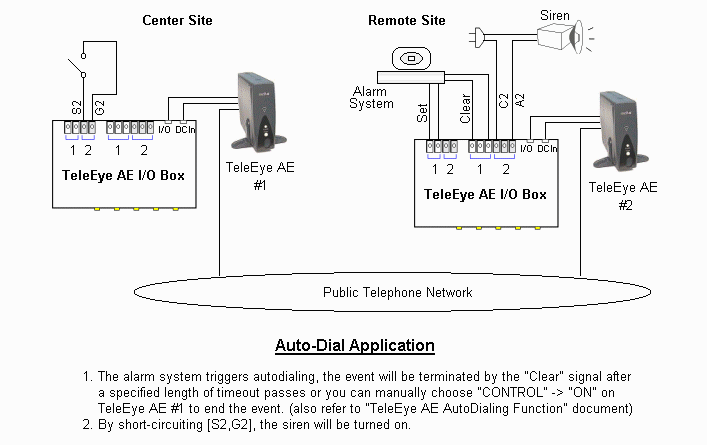

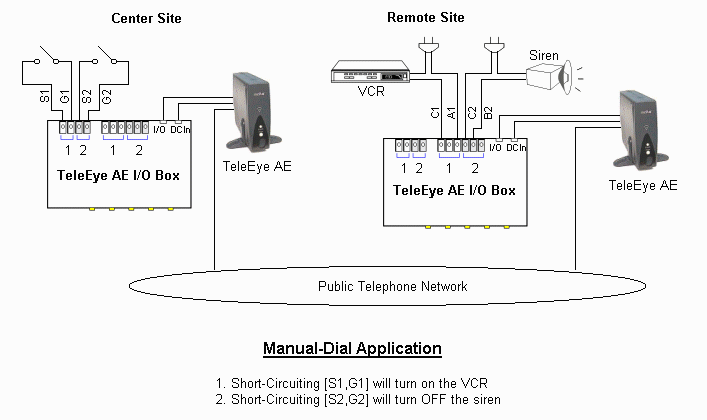

TeleEye AE I/O Box Applications
